Karun 4 hydro power plant , Engineering of turbine, generator and regulator

Iran Water and Power Resources Development Inc. , Karun 4 hydroelectric power plant , sadaf teknik

Blog

Client:

Iran Water & Power Resources Development Co.

Sub Contractor: Sadaf Teknik Endüstri
Location: Chaharmahal and Bakhtiari, Iran
Scheme: EPC
Scope: Engineering, procurement, construction and commissioning, excluding engineering and procurement of turbine, generator and governor

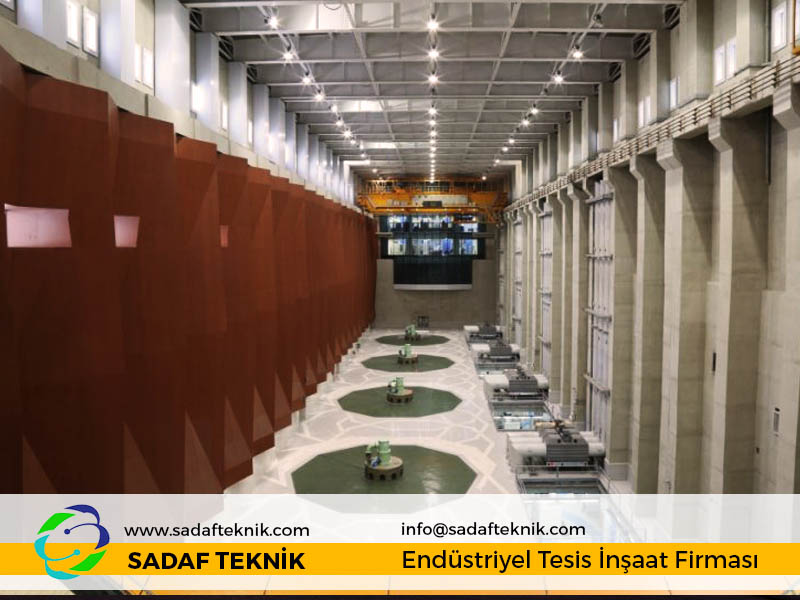

Karun 4 hydro power plant

Specification:

Capacity: 1000 MW (4×250 MW)
Type of power house: Surface
Average annual power generation: 2107 GWh
Main equipment:
Turbine: Vertical Francis, 187.5 rpm, 700 tons each
Generator: Synchronous type, 15.75 KV
Butterfly valve: 5.3 m inner outlet diameter
Governor: Digital electrohydraulic governors, 60 bar
Generator busduct: Isolated busducts, 16 KV
Transformer: Single phase step up Transformers, 100 MVA
Switchyard: 400 KV, SF6 type
Crane: Two power house main cranes, 250 tons each

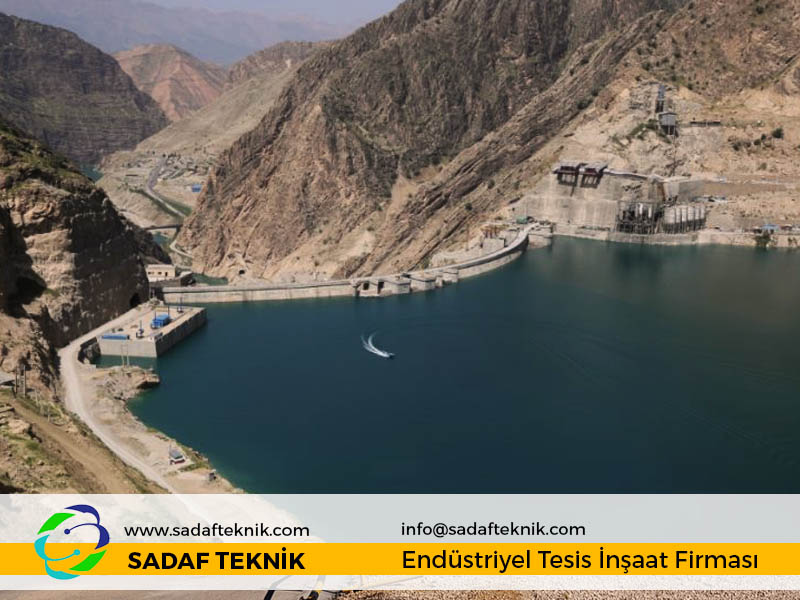

Engineering of turbine, generator and regulator
